Beschreibung

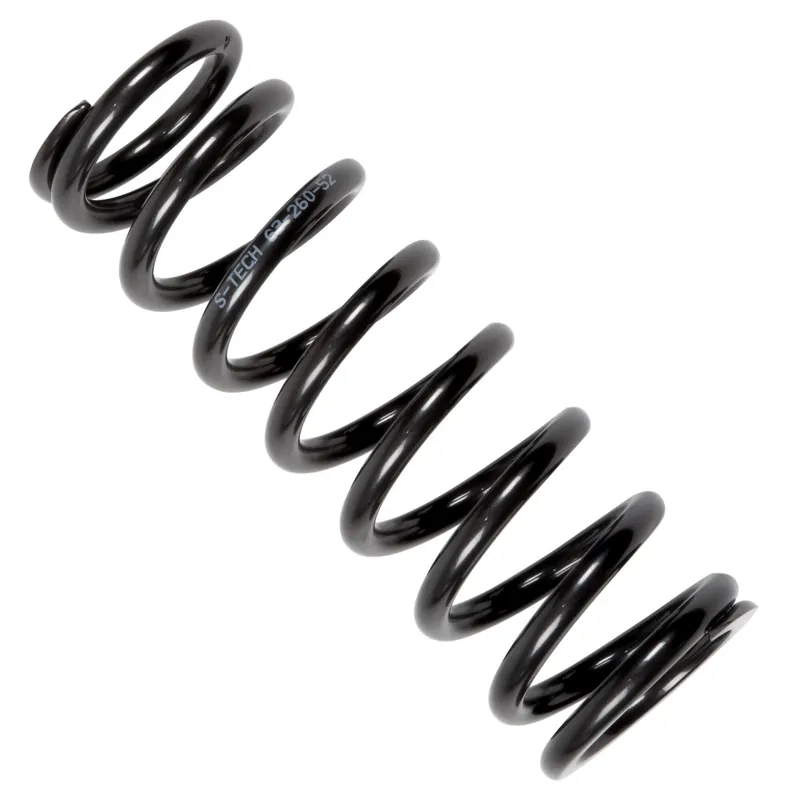

The S-TECH shock absorber spring was specifically designed for rugged off-road use. They are manufactured to DIN Quality 1 and ISO 9000/2000 standards and are subject to continuous quality control.
Features:
- Made of high-quality chrome-silicon spring steel
- Both ends ground
- Heat-treated and
- Pre-set (-> minimal set loss)
- Surface-hardened (shot-blasted)
- High-quality corrosion protection through phosphating and epoxy resin coating
- Very high block strength
- Very low lateral forces with ideal positioning of the force axis relative to the spring axis
- Planar parallelism and exact alignment of the spring ends relative to each other under loaded and unloaded conditions
- Very tight tolerances: Inner diameter di ± 0.5%, spring rate C ± 2.5%
- Printed with type, spring rate, length, and date of manufacture
Color:
Titanium look, RAL 9126
Dimensions
Inner diameter: 56 / 53 mm
Length: 245 mm
We can help you find the optimal spring rate based on your vehicle’s weight and make:
| Item information | Value |
|---|---|
| LENGTH: | 245mm |
| Inner diameter (top): | 56 |
| Inner diameter (bottom): | 53 |
| Item weight: | 2,00 kg |
| Content: | 1,00 Stück |
